Product Summary

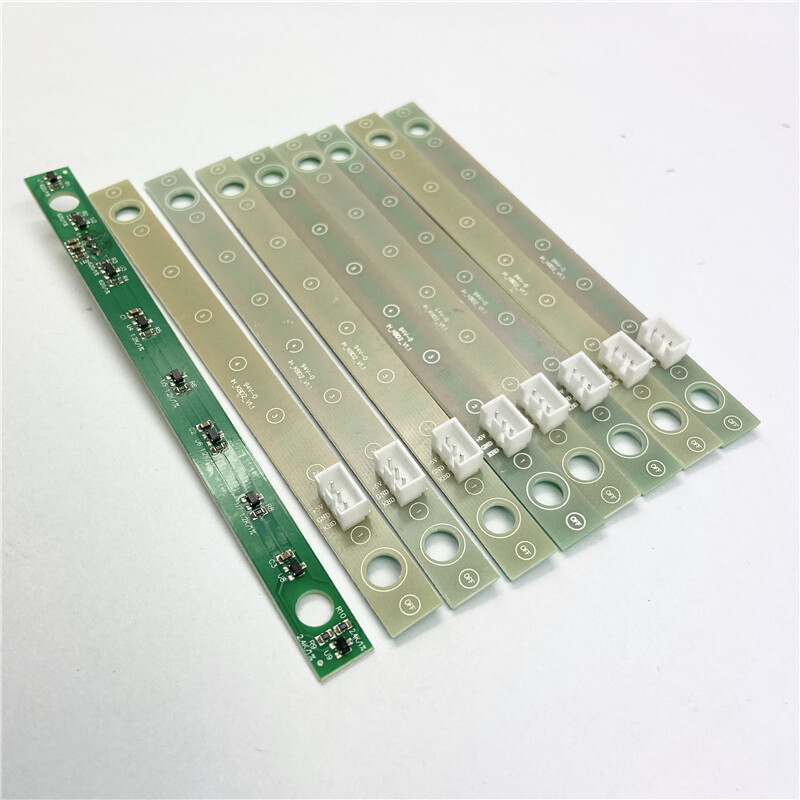

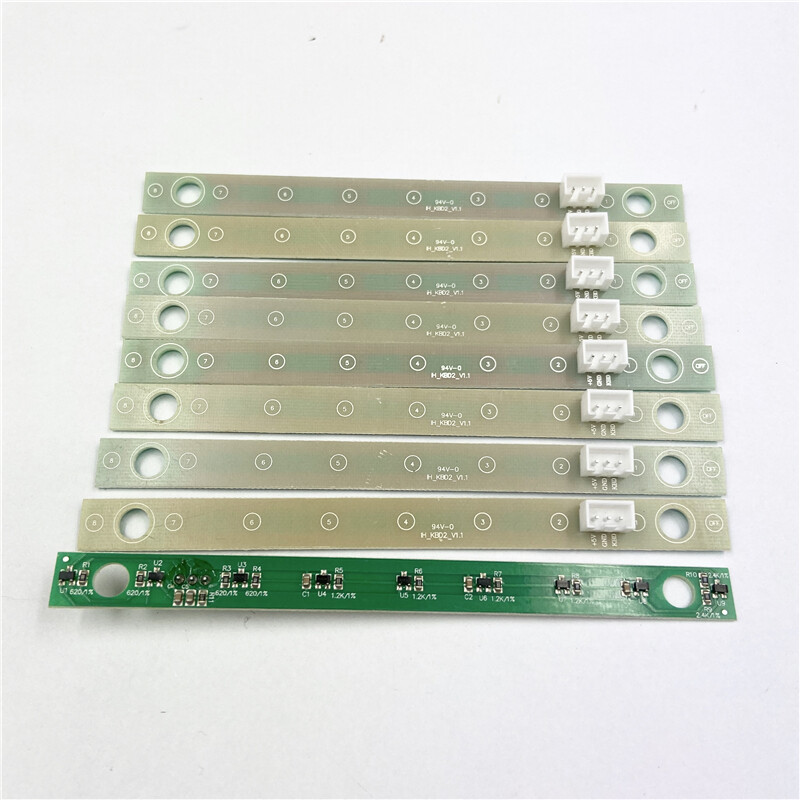

Commercial Induction Cooker 8-Level Magnetic Control Switch Circuit Board. Levels: 8
Product Details
Product Name: Commercial Induction Cooker 8-Level Magnetic Control Switch Circuit Board
Heat Settings: 8 levels
Control Method: Hall Magnetic Non-Contact Sensing
Compatible Equipment: Commercial Induction Wok Stove, Large Pot Burner, Low Stock Pot
Primary Applications: Gear Control, Stove Replacement & Repair, Complete Unit Integration
Board Features: Three-Proof Moisture and Oil Resistant Industrial PCB
Power Compatibility: 6KW-30KW High-Power Commercial Induction Cooker
Key Benefits: Contactless operation prevents oxidation, long lifespan, and no gear slipping.
Parameters:
Project
Details
Table Header
8-Position Slide and Rotary Switch Parameters
Test Conditions
5V
Gear Coverage
OFF, 1 Speed, 2 Speed, 3 Speed, 4 Speed, 5 Speed, 6 Speed, 7 Speed, 8 Speed
Corresponding parameter value
4.52V, 4.14V, 3.82V, 3.55V, 3.1V, 2.76V, 2.48V, 2.16V, 1.91V
